LR1130 Alkaline manganese button batteries

LR1130 Description

TECHNICAL SPECIFICATION LR1130 Chemical System : Alkaline manganese button batteries Model No.: LR1130 (LR54 AG10 189) Nominal Dimensions : Ф11.60×.

LR1130 Applications

* : Watch, Calculator, Electronic toy, etc. A Shelf Life : Not less than 90%of the service capacity, following Dimensions 1st year storage at 20 . Loading : 1000Ω(20 ) A Cut Off Voltage : 0.90V B Capacity : 72mAh C B(ref) Unit: mm 0.40(ref) 11.40
* 11.60 2.90
* 3.10 T

📥 Download Datasheet

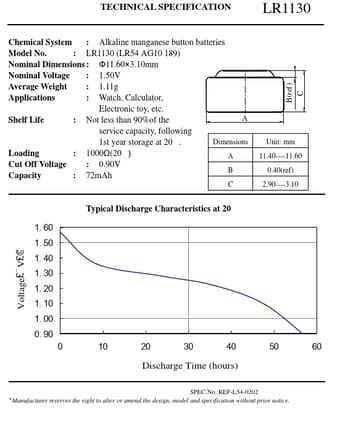

Preview of LR1130 PDF
datasheet Preview Page 2

Datasheet Details

Part number
LR1130
Manufacturer
ETC
File Size
166.58 KB
Datasheet
LR1130-ETC.pdf
Description
Alkaline manganese button batteries
