LR1107 - 600mA FAST ULTRA LOW DROPOUT LINEAR REGULATOR

Product Overview

UTC

📥 Download Datasheet

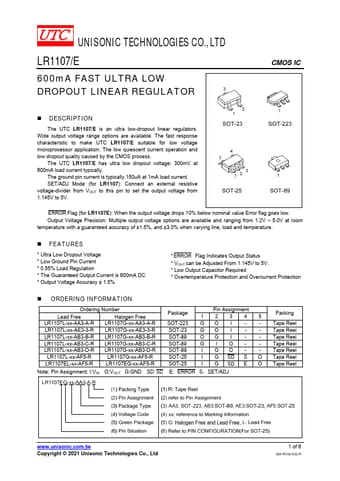

LR1107 600mA FAST ULTRA LOW DROPOUT LINEAR REGULATOR by UTC - Datasheet Preview — Datasheet preview – LR1107

Datasheet Details

Part number	LR1107
Manufacturer	UTC
File Size	241.50 KB
Description	600mA FAST ULTRA LOW DROPOUT LINEAR REGULATOR
Datasheet	LR1107 Datasheet
Additional preview pages of the LR1107 datasheet.

Product details

Description

The UTC LR1107/E is an ultra low-dropout linear regulators.

Features

Ultra Low Dropout Voltage.
Low Ground Pin Current.
0.55% Load Regulation.
The Guaranteed Output Current is 600mA DC.
Output Voltage Accuracy ± 1.5%.
ERROR Flag Indicates Output Status.
VOUT can be Adjusted From 1.145V to 5V.
Low Output Capacitor Required.
Overtemperature Protection and Overcurrent Protection.
