LR626 Alkaline manganese button batteries

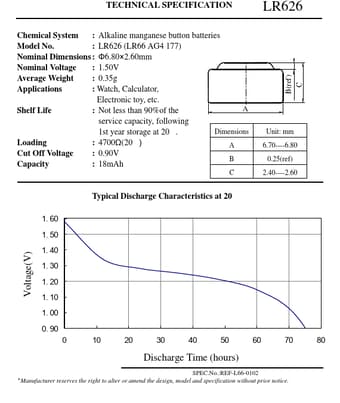

TECHNICAL SPECIFICATION LR626 Chemical System : Alkaline manganese button batteries Model No. : LR626 (LR66 AG4 177) Nominal Dimensions : Ф6.80×2.60mm Nominal Voltage : 1.50V Average Weight : 0.35g Applications : Watch, Calculator, Electronic toy, etc. A Shelf Life : Not less than 90%of the service capacity, following Dimensions 1st year storage at 20 . Loading : 4700Ω(20 ) A Cut Off Voltage : 0.90V B Capacity : 18mAh C B(ref) Unit: mm 0.25(ref) 6.70 6.80 2.40 <.

LR626 Datasheet (70.07 KB)

LR626 Datasheet Preview — Preview of LR626 PDF

Datasheet Details

Part number:

LR626

Manufacturer:

ETC

File Size:

70.07 KB

Description:

Alkaline manganese button batteries.
