LR6260 - Low Dropout Voltage 500mA CMOS LDO Regulator

LRC

📥 Download Datasheet

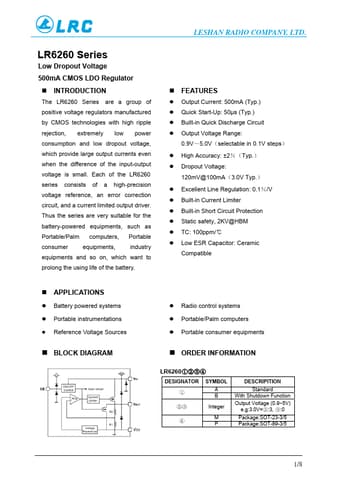

LR6260 Datasheet Preview — Preview of LR6260 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LR6260
Manufacturer	LRC
File Size	430.29 KB
Description	Low Dropout Voltage 500mA CMOS LDO Regulator
Datasheet	LR6260-LRC.pdf

LR6260 Product details

Features

S z Output Current: 500mA (Typ. ) z Quick Start-Up: 50μs (Typ. ) z Built-in Quick Discharge Circuit z Output Voltage Range: 0.9V～5.0V（selectable in 0.1V steps） z High Accuracy: ±2％（Typ. ） z Dropout Voltage: 120mV@100mA（3.0V Typ. ） z Excellent Line Regulation: 0.1％/V z Built-in Current Limiter z Built-in Short Circuit Protection z Static safety, 2KV@HBM z TC: 100ppm/℃ z Low ESR Capacitor: Ceramic Compatible.
