LR6219 Datasheet - LRC

LR6219 Low Dropout Voltage 300mA CMOS LDO Regulator

LESHAN RADIO COMPANY, LTD. LR6219 Series Low Dropout Voltage 300mA CMOS LDO Regulator INTRODUCTION The LR6219 Series are a group of positive voltage regulators manufactured by CMOS technologies with high ripple rejection, extremely low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small. Each of the LR 6219 series consists of a high-precision voltage reference, an error correction circuit, and a c.

LR6219 Datasheet (376.93 KB)

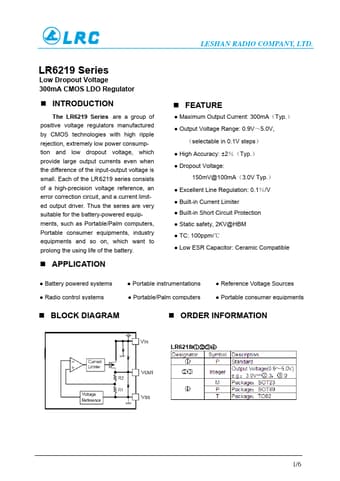

Preview of LR6219 PDF

Datasheet Details

Part number:

LR6219

Manufacturer:

LRC

File Size:

376.93 KB

Description:

Low dropout voltage 300ma cmos ldo regulator.
