LR6230 Datasheet - LRC

LR6230 - Low Consumption Current High PSRR 300mA CMOS Voltage Regulator

Standard With Shutdown Function Output Voltage e.g.1.8V=②:1, ③:8 Package:SOT-23-3/5 Package:SC-70-5 Package:SOT-89-3/5 Package:TO-92 1/10 LESHAN RADIO COMPANY, LTD.

* PIN CONFIGURATION SOT-23-3 SOT-23-5/SC-70-5 TO-92 SOT-89-3 SOT-89-5 PIN NUMBER SOT-23-3 SOT-89-3 TO-92 PIN NAME M

LESHAN RADIO COMPANY, LTD.

Low Consumption Current High PSRR 300mA CMOS Voltage Regulator LR6230 Series INTRODUCTION The LR6230 series are a group of positive voltage regulators manufactured by CMOS technologies with high ripple rejection, low power consumption and low dropout voltage, which can prolong battery life in portable electronics.

The LR6230 series work with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications.

The LR6230 series c

LR6230 Features

* z Low Dropout Voltage:150mV@150mA z Low Quiescent Current:5μA z High Ripple Rejection:65dB@1kHz z Excellent Line and Load Transient Response z Operating Voltage:2.0V~6.0V z Output Voltage:1.2 ~ 5.0V z High Accuracy:±2%(Typ.) z Built-in Current Limiter, Short-Circuit Protection z TTL- Logic-Controlle

LR6230-LRC.pdf

Preview of LR6230 PDF

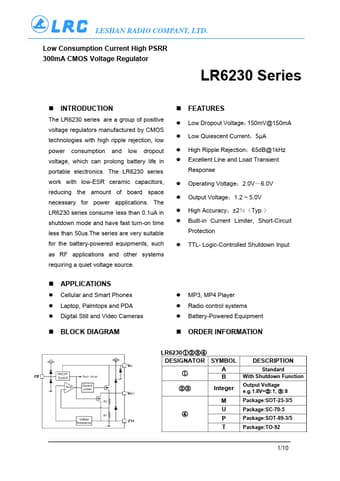

LR6230 Datasheet Preview Page 2 LR6230 Datasheet Preview Page 3

Datasheet Details

Part number:

LR6230

Manufacturer:

LRC

File Size:

597.53 KB

Description:

Low consumption current high psrr 300ma cmos voltage regulator.
