LT1E73A Datasheet PDF - ETC (LT1x73A) Chip LED Device Specs

Datasheet Details

Part number	LT1E73A
Manufacturer	ETC
File Size	110.55 KB
Description	(LT1x73A) Chip LED Device
Datasheet	LT1E73A Datasheet
Additional preview pages of the LT1E73A datasheet.

📁 Similar Datasheet

LT1E77A - Chip LED Device (Sharp Electrionic Components)

LT1E45A - Chip LED (Sharp Electrionic Components)

LT1E90A - DEVICE SPECIFICATION FOR Light Emitting Diode (Sharp Electrionic Components)

LT1ED53A - (LT1xx53A) Dichromatic Chip LED Devices (Sharp Electrionic)

LT1ED90A - DEVICE SPECIFICATION FOR Light Emitting Diode (Sharp Electrionic Components)

LT1EH67A - 1616 Size/ 0.8mm Thickness/ Compact Dichromatic Leadless Chip LED Devices (Sharp Electrionic Components)

LT1EP53A - (LT1xx53A) Dichromatic Chip LED Devices (Sharp Electrionic)

LT1ET53A - 3.3X2.9mm/ 1.1mm Thickness/ Milky Diffusion/ Dichromatic Chip LED Devices (Sharp Electrionic Components)

LT1ET53A - (LT1xx53A) Dichromatic Chip LED Devices (Sharp Electrionic)

LT1ET82A - 3.3X2.9mm/ 1.1mm Thickness/ High-luminosity/ Dichromatic Chip LED Devices with Lens (Sharp Electrionic Components)

Full PDF Text Transcription

Click to expand full text

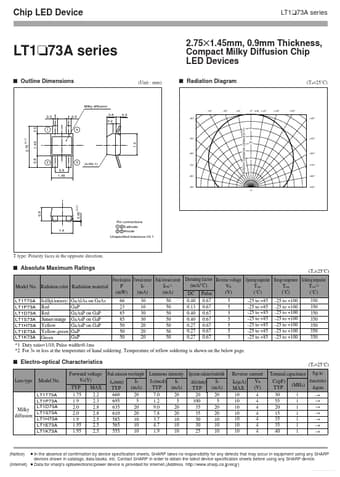

Chip LED Device LT1t73A series LT1t73A series s Outline Dimensions (Unit : mm) 2.75!1.45mm, 0.9mm Thickness, Compact Milky Diffusion Chip LED Devices s Radiation Diagram (Ta=25˚C) Milky diffusion -30˚ -20˚ -10˚ 0˚ 100 +10˚ +20˚ +30˚ +40˚ 80 +50˚ 60 0.3 0.5 0.3 0.6 0.2 0.3 -40˚ 1 4 -50˚ Relative luminous intensity(%) 2.75±0.15 1.45 1.4 -60˚ +60˚ 40 +70˚ 20 +80˚ 0.8 2 0.9 1.45 3 (4-R0.1) -70˚ -80˚ -90˚ 0 +90˚ 0.05±0.05 0.9 1.4 Pin connections 1 4 Cathode 2 3 Anode Unspecified tolerance:±0.1 T type: Polarity faces in the opposite direction. s Absolute Maximum Ratings Power dissipation Forward current Peak forward current P IF IFM*1 Model No.
