LT1E45A - Chip LED

Datasheet Summary

Description

Sharp's LT1E45A(high-luminosity, yellow-green) is thin type compact size chip LED device.(2.7 x1.3 x 1.2mm) It is suitable for LCD backlight of portable equipment such as cellular phones and pagers etc.

Features

(1) Compact, thin type(2.7x1.3x1.2mm thickness) (2) High-luminosity, yellow-green (3) Reflector is designed for the most suitable characteristics.
Radiation characteristics Horizonatal (130˚) (2θ1/2) Vertical(100˚) (4) Tape packaged product( 3 000pcs. /reel) Resist Chip LED Device Outline Dimensions 2.7 Reflector case (Unit:mm) 1.3 LED chip Electrode 1 2 Terminal connection.

Sharp Electrionic Components

📥 Download Datasheet

Datasheet Details

Part number	LT1E45A
Manufacturer	Sharp Electrionic Components
File Size	13.24 KB
Description	Chip LED
Datasheet	LT1E45A Datasheet

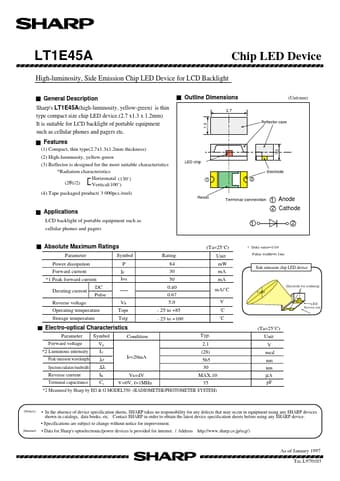

Additional preview pages of the LT1E45A datasheet.
