LT1ET82A - 3.3X2.9mm/ 1.1mm Thickness/ High-luminosity/ Dichromatic Chip LED Devices with Lens

📥 Download Datasheet

Datasheet preview – LT1ET82A

Datasheet Details

Part number LT1ET82A
Manufacturer Sharp Electrionic Components
File Size 93.84 KB
Description 3.3X2.9mm/ 1.1mm Thickness/ High-luminosity/ Dichromatic Chip LED Devices with Lens
Datasheet download datasheet LT1ET82A Datasheet
Additional preview pages of the LT1ET82A datasheet.

📁 Similar Datasheet

  • LT1ET53A - (LT1xx53A) Dichromatic Chip LED Devices (Sharp Electrionic)
  • LT1E40A - (LT1x40A) Leadless Chip LED Device (ETC)
  • LT1E51A - (LT1x51A) Chip LED Device (ETC)
  • LT1E67A - Chip LED (ETC)
  • LT1E73A - (LT1x73A) Chip LED Device (ETC)
  • LT1E82A - (LT1x82A) Chip LED Device (ETC)
  • LT1ED53A - (LT1xx53A) Dichromatic Chip LED Devices (Sharp Electrionic)
  • LT1EP53A - (LT1xx53A) Dichromatic Chip LED Devices (Sharp Electrionic)
  • LT10.52MJA10-A - Ceramic Filter (RELM)
  • LT10.7 - Ceramic Filter (YUKUTO)
Other Datasheets by Sharp Electrionic Components
  • LT1ET82A - (LT1xx82A) Dichromatic Chip LED Devices
  • LT1ET53A - 3.3X2.9mm/ 1.1mm Thickness/ Milky Diffusion/ Dichromatic Chip LED Devices
  • LT1E45A - Chip LED
  • LT1E77A - Chip LED Device
  • LT1E90A - DEVICE SPECIFICATION FOR Light Emitting Diode
  • LT1ED90A - DEVICE SPECIFICATION FOR Light Emitting Diode
  • LT1EH67A - 1616 Size/ 0.8mm Thickness/ Compact Dichromatic Leadless Chip LED Devices
  • LT120 - Hall Voltage 160mV GaAs Hall Device

Full PDF Text Transcription

Click to expand full text

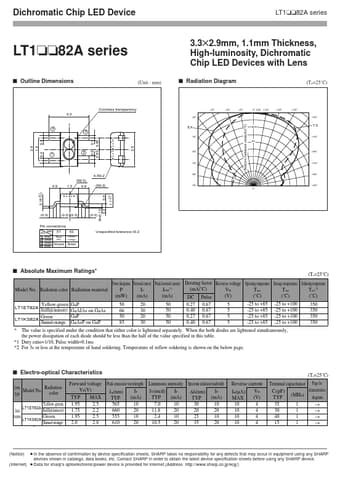

Dichromatic Chip LED Device LT1tt82A series LT1tt82A series s Outline Dimensions (Unit : mm) 3.3!2.9mm, 1.1mm Thickness, High-luminosity, Dichromatic Chip LED Devices with Lens s Radiation Diagram (Ta=25˚C) Colorless transparency 3.3 -40˚ -30˚ -20˚ -10˚ 0˚ 100 +10˚ +20˚ +30˚ +40˚ Relative luminous intensity(%) 4 E.K 80 T.S 3 -50˚ +50˚ 60 0.6 0.4 0.85 0.95 2.9 1.9 0.4 2.9 0.4 1 2 -60˚ +60˚ 40 +70˚ 20 +80˚ -70˚ 4-R0.2 (R0.5) 0.9 +0.1 0.16-0.06 -80˚ 1.5 0.9 (R0.2) +0.2 1.1-0.1 -90˚ 0 +90˚ (0.3) (0.3) (0.3) (0.3) Pin connections Pin 1 2 3 4 series ET Red Anode (HL) Cathode Cathode Yellow-green Anode KS Sunset orange Unspecified tolerance:±0.2 Green s Absolute Maximum Ratings* Model No.
