LT1E77A Datasheet, Device, Sharp Electrionic Components

LT1E77A Features

  • Device (1) Thin type( Thickness: 0.5mm) (2) Super compact size(1.6 x 0.8 x 0.5mm) (3) Realizes high-luminosity due to originally developed PWB with reflector (4) Tape packaged product( 5 000pc

PDF File Details

Part number:

LT1E77A

Manufacturer:

Sharp Electrionic Components

File Size:

11.99kb

Download:

📄 Datasheet

Description:

Chip led device. Sharp's LT1E77A(high-luminosity, yellow-green) is thin type super compact size chip LED device.(1.6 x 0.8 x 0.5mm) It is suitable for

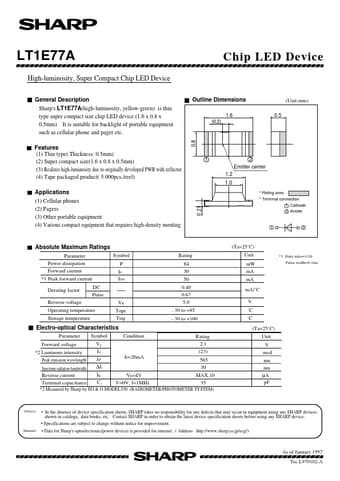

Datasheet Preview: LT1E77A 📥 Download PDF (11.99kb)

LT1E77A Application

  • Applications (1) Cellular phones (2) Pagers (3) Other portable equipment (4) Various compact equipment that requires high-density mouting 0.21 0.8
