MX205Q

Dual Axis Accelerometer

MX205Q Features

* Dual axis acceleration outputs

* Analog outputs, ratiometric

* 1.0 mg Resolution in 1Hz bandwidth

* 40 Hz Bandwidth expandable to 160 Hz See Application Note (AN-00MX-003)

* Quiescent Supply Voltage: 3.5 mA

* 0g output voltage 2.315V (with 5V supply)

MX205Q General Description

The MX205Q is a very low cost dual-axis acceleration sensor on a monolithic IC. With no moving parts, the device is extremely reliable and is manufactured on a submicron CMOS process enabling small geometries and small die size, resulting in low overall cost and high functionality. The MX205Q is pri.

MX205Q Datasheet (246.98 KB)

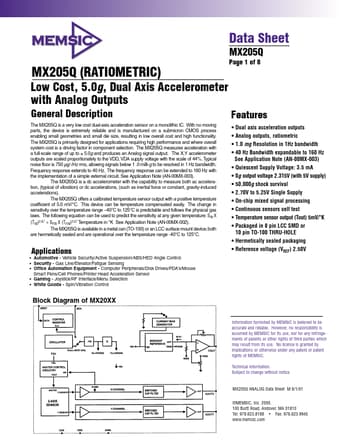

Preview of MX205Q PDF

Datasheet Details

Part number:

MX205Q

Manufacturer:

ETC

File Size:

246.98 KB

Description:

Dual axis accelerometer.
