MX210Q Datasheet - Memsic

Low Cost / Dual Axis Accelerometer

MX210Q Features

* Dual axis acceleration outputs

* Analog outputs, ratiometric

* 1.0 mg Resolution in 1Hz bandwidth

* 40 Hz Bandwidth expandable to 160 Hz See Application Note (AN-00MX-003)

* Quiescent Supply Voltage: 3.5 mA

* 0g output voltage 2.315V (with 5V supply)

MX210Q General Description

The MX210Q is a very low cost dual-axis acceleration sensor on a monolithic IC. With no moving parts, the device is extremely reliable and is manufactured on a submicron CMOS process enabling small geometries and small die size, resulting in low overall cost and high functionality. The MX210Q is pri.

MX210Q Datasheet (246.99 KB)

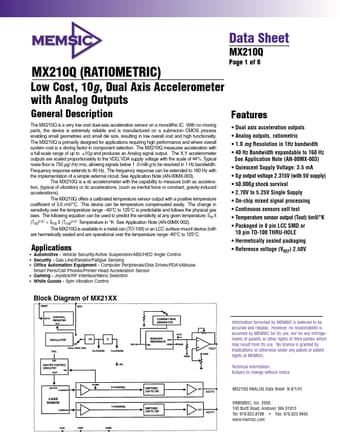

MX210Q Datasheet Preview — Preview of MX210Q PDF

Datasheet Details

Part number:

MX210Q

Manufacturer:

Memsic

File Size:

246.99 KB

Description:

Low cost / dual axis accelerometer.
