NME0509

DC/DC Converters NME SERIES 1 WATT

NME0509 Features

* 0.12 in2 board space

* 75% Efficiency

* 22 Watts per in3 MODELS CHART OUTPUT VOLTAGE 5VDC 9VDC 12VDC 15VDC OUTPUT CURRENTS 200mA 110mA 84mA 67mA 5VDC INPUT NME0505 NME0509 NME0512 NME0515 PART NUMBERS 12VDC INPUT 24VDC INPUT NME1205 NME2405 NME1209 NME2409 NME1212 NME2412

NME0509 Datasheet (47.52 KB)

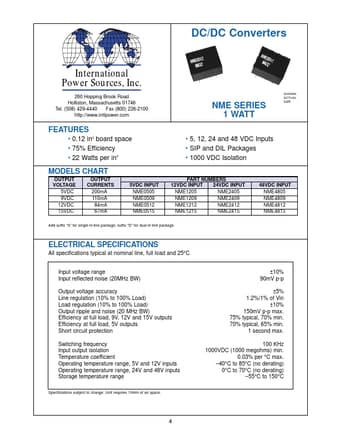

Preview of NME0509 PDF

Datasheet Details

Part number:

NME0509

Manufacturer:

ETC

File Size:

47.52 KB

Description:

Dc/dc converters nme series 1 watt.
DC/DC Converters International Power Sources, Inc. 260 Hopping Brook Road Holliston, Massachusetts 01746 Tel. (508) 429-4440 Fax (800) 226-2100 http:.
