NME0509DC Isolated 1W Single Output DC-DC Converters

The NME series of DC-DC Converters is particularly suited to isolating and/or converting DC power rails. The galvanic isolation allows the device to be conﬁgured to provide an isolated negative rail in systems where only positive rails exist. The wide temperature range guarantees startup from

NME0509DC Features

* Short circuit protection options

* UL 60950 recognised

* Single isolated output

* 1kVDC isolation ‘Hi Pot Test’

* Wide temperature performance at full 1 watt load,

* 40°C to 85°C2

* Industry standard pinout

* 5V, 12V, 15V & 24V input

NME0509DC Datasheet (204.50 KB)

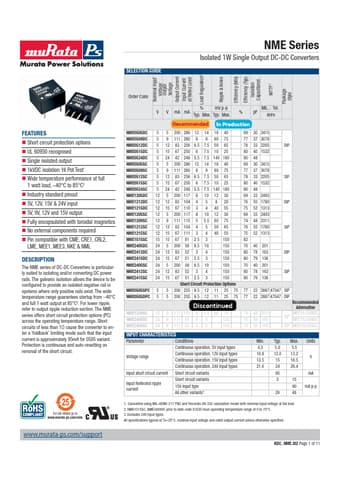

NME0509DC Datasheet Preview — Preview of NME0509DC PDF

Datasheet Details

Part number:

NME0509DC

Manufacturer:

muRata

File Size:

204.50 KB

Description:

Isolated 1w single output dc-dc converters.
