NME0505DC - Isolated 1W Single Output DC-DC Converters

muRata

The NME0505DC by muRata is a Isolated 1W Single Output DC-DC Converters. Below is the official datasheet preview.

📥 Download Datasheet

NME0505DC Isolated 1W Single Output DC-DC Converters by muRata - Datasheet Preview — Official preview page of the NME0505DC Isolated 1W Single Output DC-DC Converters datasheet (muRata).

Datasheet Details

Part number	NME0505DC
Manufacturer	muRata
File Size	204.50 KB
Description	Isolated 1W Single Output DC-DC Converters
Datasheet	NME0505DC-muRata.pdf

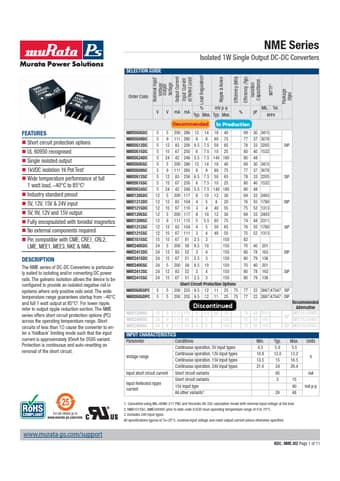

Additional preview pages of the NME0505DC datasheet.

NME0505DC Product details

Description

The NME series of DC-DC Converters is particularly suited to isolating and/or converting DC power rails. 40°C and full 1 watt output at 85°C2.

Features

Short circuit protection options.
UL 60950 recognised.
Single isolated output.
1kVDC isolation ‘Hi Pot Test’.
Wide temperature performance at full 1 watt load,.
40°C to 85°C2.
Industry standard pinout.
5V, 12V, 15V & 24V input.
5V, 9V, 12V and 15V output.
Fully encapsulated with toroidal magnetics.
No external components required.
Pin compatible with CME, CRE1, CRL2, LME, MEE1, MEE3, NKE &.
