NME0509SC, NME0505DC, Isolated 1W Single Output DC-DC Converters

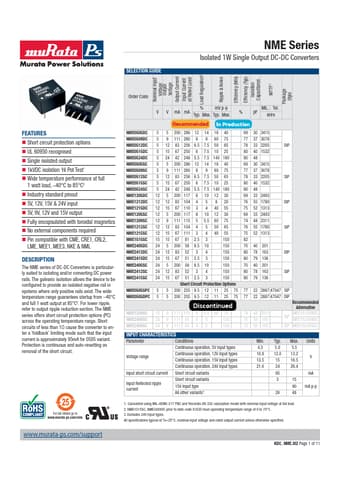

www.murata-ps.com SELECTION GUIDE NME Series Isolated 1W Single Output DC-DC Converters Nominal Input Voltage Output Voltage Output Current Input C.
The NME series of DC-DC Converters is particularly suited to isolating and/or converting DC power rails.

NME0505DC-muRata.pdf

NME0509SC Datasheet Preview — This datasheet PDF includes multiple part numbers: NME0509SC, NME0505DC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NME0509SC, NME0505DC

Manufacturer:

muRata

File Size:

204.50 KB

Description:

Isolated 1W Single Output DC-DC Converters

Note:

This datasheet PDF includes multiple part numbers: NME0509SC, NME0505DC.
Please refer to the document for exact specifications by model.

Features

* Short circuit protection options
* UL 60950 recognised
* Single isolated output
* 1kVDC isolation ‘Hi Pot Test’
* Wide temperature performance at full 1 watt load,
* 40°C to 85°C2
* Industry standard pinout
* 5V, 12V, 15V & 24V input
