NT2903 Datasheet - ETC

Single Chip FM Transceiver

NT2903 Features

* Direct-Conversion, Zero-IF, Architecture Wide Bandwidth FM Transceiver Suitable for FM/FSK Modulation Dual, On-Chip PLL Synthesizers/VCOs 3-wire serial interface System Noise Figure 4.7 dB (typ.)

NT2903 General Description

The NT2903 CHIP-CEIVERTM is a complete, single chip, FM transceiver solution, which will operate in any 24 MHz band from 800-1000 MHz, including the Industrial Scientific Medical (ISM) band (902-928 MHz). Utilizing a unique direct-conversion, zero-intermediate frequency (zero-IF) receiver architectu.

NT2903 Datasheet (1.69 MB)

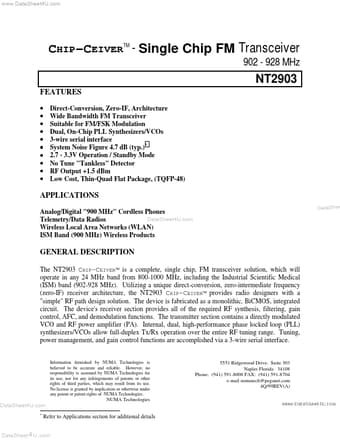

NT2903 Datasheet Preview — Preview of NT2903 PDF

Datasheet Details

Part number:

NT2903

Manufacturer:

ETC

File Size:

1.69 MB

Description:

Single chip fm transceiver.
