NT2012 WIREWOUND COMMON MODE FILTER

TOKO

Description

NT2012 Series WIREWOUND COMMON MODE FILTER .
The TOKO NT2012 is a wirewound miniature common mode filter specifically designed to eliminate common mode noise in USB 2.

📥 Download Datasheet

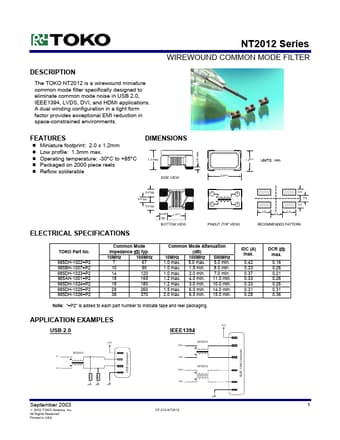

NT2012 Datasheet Preview — Preview of NT2012 PDF

Datasheet Specifications

Part number: NT2012
Manufacturer: TOKO
File Size: 370.21 KB
Datasheet: NT2012_TOKO.pdf
Description: WIREWOUND COMMON MODE FILTER

Features

* Miniature footprint: 2.0 x 1.2mm Low profile: 1.3mm max. Operating temperature: -30°C to +85°C Packaged on 2000 piece reels Reflow solderable DIMENSIONS 1.3 max. 0.6 max. 1.2±0.2 UNITS: mm SIDE VIEW 2.0±0.2 0.4 typ. 0.4 typ. 0.4 typ. 0.45 typ. 1.1±0.2 1 3 6 4 0.9 0.8 0.9 0.4 0.4 0.4 www. D
