NT2012F WIREWOUND COMMON MODE FILTER

The TOKO NT2012F is a wirewound miniature common mode filter specifically designed to eliminate common mode noise in USB 2.0, IEEE 1394, and LVDS applications. An economical alternative to the TOKO NT2012, the dual winding configuration in a tight form factor provides exceptional EMI reduction in sp.

NT2012F Features

* Miniature footprint: 2.0 x 1.2mm Low profile: 1.0mm max. Operating temperature: -30°C to +85°C Packaged on 2000 piece reels Reflow solderable DIMENSIONS 1.2±0 .2 0. 4 t y p. 0.4 ty p. 2.0±0.2 TOP VIEW 1.1±0.2 0.45 typ. BOTTOM VIEW www.DataSheet4U.com 0.9± 0.1 SIDE VIEW APPLICATION EXAMPLE U

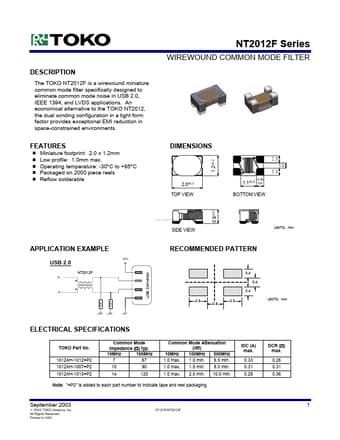

NT2012F Datasheet (253.23 KB)
