NT256D64S88B1G, NT256D64S88B0G - 256MB DDR DIMM

Nanya Technology

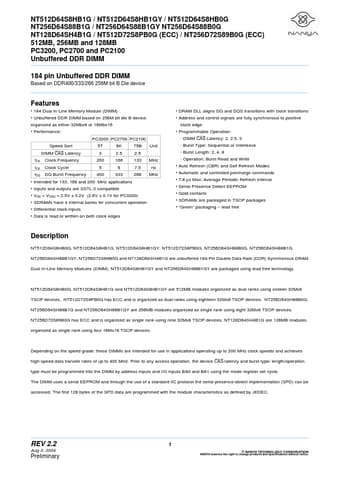

NT256D64S88B1G Datasheet Preview — This datasheet PDF includes multiple part numbers: NT256D64S88B1G, NT256D64S88B0G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	NT256D64S88B1G, NT256D64S88B0G
Manufacturer	Nanya Technology
File Size	358.17 KB
Description	256MB DDR DIMM
Datasheet	NT256D64S88B0G_NanyaTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: NT256D64S88B1G, NT256D64S88B0G. Please refer to the document for exact specifications by model.

NT256D64S88B1G Product details

Description

NT512D64S8HB0G, NT512D64S8HB1G, NT512D64S8HB1GY, NT512D72S8PB0G, NT256D64SH88B0G, NT256D64SH88B1G, NT256D64SH88B1GY, NT256D72S89B0G and NT128D64SH4B1G are unbuffered 184-Pin Double Data Rate (DDR) Synchronous DRAM Dual In-Line Memory Modules (DIMM).

Features

184 Dual In-Line Memory Module (DIMM).
Unbuffered DDR DIMM based on 256M bit die B device, organized as either 32Mbx8 or 16Mbx16.
Performance: PC3200 PC2700 PC2100 Speed Sort DIMM CAS Latency fCK tCK Clock Frequency Clock Cycle 5T 3 200 5 400 6K 2.5 166 6 333 75B 2.5 133 7.5 266 MHz ns MHz Unit.
DRAM DLL aligns DQ and DQS transitions with clock transitions.
Address and control signals are fully synchronous to positive clock edge.
Programmabl.
