NT2H1001, NT2L1001 - NFC Forum Type 2 Tag compliant IC

NXP

NT2H1001 Datasheet Preview — This datasheet PDF includes multiple part numbers: NT2H1001, NT2L1001. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	NT2H1001, NT2L1001
Manufacturer	NXP ↗
File Size	880.14 KB
Description	NFC Forum Type 2 Tag compliant IC
Datasheet	NT2L1001-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: NT2H1001, NT2L1001. Please refer to the document for exact specifications by model.

NT2H1001 Product details

Description

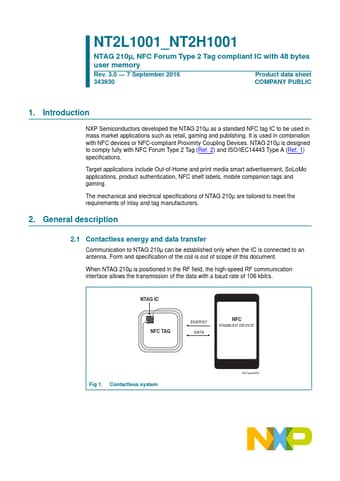

2.1 Contactless energy and data transfer Communication to NTAG 210µ can be established only when the IC is connected to an antenna.Form and specification of the coil is out of scope of this document.When NTAG 210µ is positioned in the RF field, the high-speed RF communication interface allows the transmission of the data with a baud rate of 106 kbit/s.NTAG IC NFC TAG ENERGY DATA NFC ENABLED DEVICE Fig 1. Contactless system 001aao403 NXP Semiconductors NT2L1001_NT2H1001 NTAG 210µ, NFC F

Features

Contactless transmission of data and supply energy.
Operating frequency of 13.56 MHz.
Data transfer of 106 kbit/s.
Data integrity of 16-bit CRC, parity, bit coding, bit counting.
Operating distance up to 100 mm (depending on various parameters as e. g. field strength and antenna geometry).
7 bytes serial number (cascade level 2 according to ISO/IEC 14443-3).
Originality signature.
True anticollision 3.1 EEPROM.
64 bytes organized in 16 pages with 4 by.
