OM9369CM - FULL-FEATURED POWER MODULE FOR HIGH-VOLTAGE DIRECT DRIVE OF 3-PHASE BRUSHLESS DC MOTORS

Datasheet Details

Part number	OM9369CM
Manufacturer	ETC
File Size	121.29 KB
Description	FULL-FEATURED POWER MODULE FOR HIGH-VOLTAGE DIRECT DRIVE OF 3-PHASE BRUSHLESS DC MOTORS
Datasheet	OM9369CM_ETC.pdf

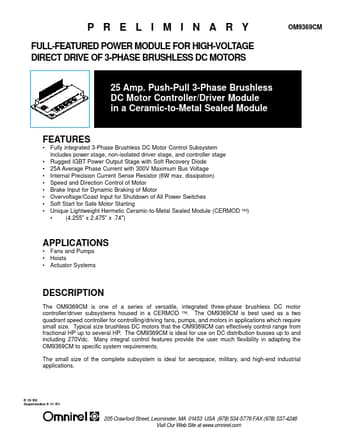

The OM9369CM is one of a series of versatile, integrated three-phase brushless DC motor controller/driver subsystems housed in a CERMOD TM.

Fully integrated 3-Phase Brushless DC Motor Control Subsystem includes power stage, non-isolated driver stage, and controller stage.
Rugged IGBT Power Output Stage with Soft Recovery Diode.
25A Average Phase Current with 300V Maximum Bus Voltage.
Internal Precision Current Sense Resistor (6W max. dissipation).
Speed and Direction Control of Motor.
Brake Input for Dynamic Braking of Motor.
Overvoltage/Coast Input for Shutdown of All.
