OM9375 - Brushless DC Motor Controller/Driver Module

Datasheet Details

Part number	OM9375
Manufacturer	ETC
File Size	141.47 KB
Description	Brushless DC Motor Controller/Driver Module
Datasheet	OM9375_ETC.pdf

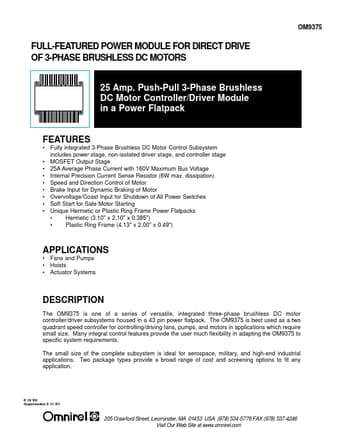

The OM9375 is one of a series of versatile, integrated three-phase brushless DC motor controller/driver subsystems housed in a 43 pin power flatpack.

Fully integrated 3-Phase Brushless DC Motor Control Subsystem includes power stage, non-isolated driver stage, and controller stage.
MOSFET Output Stage.
25A Average Phase Current with 160V Maximum Bus Voltage.
Internal Precision Current Sense Resistor (6W max. dissipation).
Speed and Direction Control of Motor.
Brake Input for Dynamic Braking of Motor.
Overvoltage/Coast Input for Shutdown of All Power Switches.
Soft Start.
