OM9402 Datasheet - ETC

GATE DRIVER For Driving IGBT Modules

OM9402 General Description

This series of gate drivers are ideally suited for driving the CERMODTM family of IGBT Power Modules, where small size, high performance and high reliability are required. Designed specifically for high power motor controls, inverters, switching power supplies, choppers and high energy pulse circuit.

OM9402 Datasheet (39.30 KB)

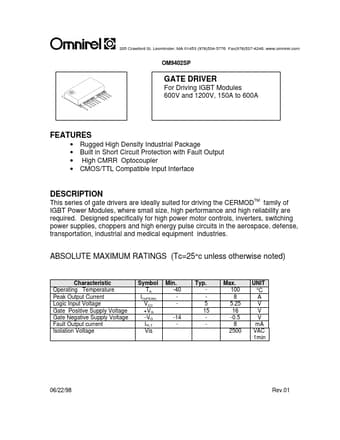

OM9402 Datasheet Preview — Preview of OM9402 PDF

Datasheet Details

Part number:

OM9402

Manufacturer:

ETC

File Size:

39.30 KB

Description:

Gate driver for driving igbt modules.
205 Crawford St. Leominster, MA 01453 (978)534-5776 Fax(978)537-4246, www.omnirel.com OM9402SP GATE DRIVER For Driving IGBT Modules 600V and 1200V, .
