PS2004B

PHOTO COUPLER

PS2004B Features

* D High-voltage isolation: 2500V min D Ultra high transfer ratio: 1300% min D High output current: 200mA max D Economical, compact, plastic dual in-line package Applications D Copy machine D Replacement for mechanical and reed relays D Replacement of pulse transformers Absolute Maximum Ratings TA =

PS2004B General Description

The PS2004B is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon Darlington photo transistor in a plastic DIP (Dual In-line Package). Package Dimensions ~9.25 ± 0.5-.A:1 (0.364) 6 5 4

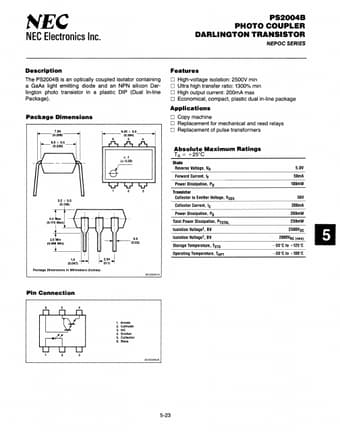

PS2004B Datasheet (138.73 KB)

Preview of PS2004B PDF

Datasheet Details

Part number:

PS2004B

Manufacturer:

ETC

File Size:

138.73 KB

Description:

Photo coupler.
