PS2001 - photomultiplier power supply

Datasheet Summary

Description

The PS2001P and N have been designed with the particular needs of the instrument manufacturer in mind.

Features

  • Variable output voltage to 2.0 kV.
  • Ultra low output ripple.
  • Precision output monitor point.
  • 24V or 12V input versions.
  • Precision reference output 3 specification 12V option fixed adjustable +5V ±0.05%, 3mA max. 0 to +5V, multiturn potentiometer 1000 : 1 10V for 100% 5V for 100% electrical input voltage range 24V option 12V option input current at full load 24V option 12V option output voltage output current polarity load regulation line regulation HF ripple LF noi.

📥 Download Datasheet

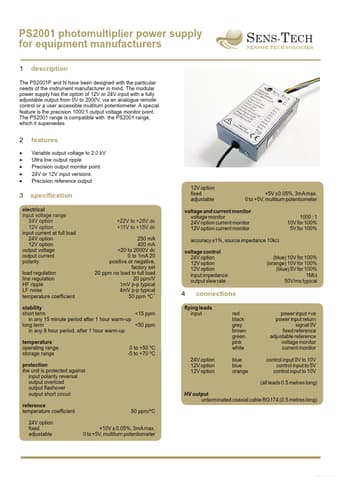

Datasheet preview – PS2001

Datasheet Details

Part number PS2001
Manufacturer Sens Tech
File Size 298.67 KB
Description photomultiplier power supply
Datasheet download datasheet PS2001 Datasheet
Additional preview pages of the PS2001 datasheet.

📁 Similar Datasheet

  • PS200 - PLASTIC SILICON RECTIFIER (Pan Jit International)
  • PS2002B - Photo Coupler (NEC Electronics)
  • PS2004B - PHOTO COUPLER (ETC)
  • PS2004B - PHOTO COUPLER (NEC)
  • PS2005B - PHOTO COUPLER (NEC)
  • PS2006 - (PS20xxx) NPN-OUTPUT DC-INPUT OPTOCOUPLER (NEC)
  • PS2006B - PHOTO COUPLER (NEC)
  • PS2007 - (PS20xxx) NPN-OUTPUT DC-INPUT OPTOCOUPLER (NEC)
  • PS2007B - HIGH SPEED PHOTO COUPLER (NEC)
  • PS200R - FAST SWITCHING PLASTIC RECTIFIER (Pan Jit International)
Other Datasheets by Sens Tech

    Full PDF Text Transcription

    Click to expand full text
    PS2001 photomultiplier power supply for equipment manufacturers 1 description SENS-TECH SENSOR TECHNOLOGIES The PS2001P and N have been designed with the particular needs of the instrument manufacturer in mind. The modular power supply has the option of 12V or 24V input with a fully adjustable output from 0V to 2000V, via an analogue remote control or a user accessible multiturn potentiometer. A special feature is the precision 1000:1 output voltage monitor point. The PS2001 range is compatible with the PS2001 range, which it supersedes 2 features · Variable output voltage to 2.0 kV · Ultra low output ripple · Precision output monitor point · 24V or 12V input versions · Precision reference output 3 specification 12V option fixed adjustable +5V ±0.05%, 3mA max.
