PS200 - PLASTIC SILICON RECTIFIER

Product Overview

Pan Jit International

Part number	PS200
Manufacturer	Pan Jit International
File Size	44.27 KB
Description	PLASTIC SILICON RECTIFIER
Datasheet	PS200 Datasheet

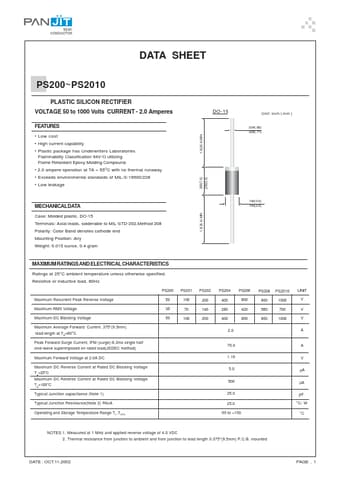

Additional preview pages of the PS200 datasheet.

Low cost.
High current capability.
Plastic package has Underwriters Laboratories Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
2.0 ampere operation at TA = 55OC with no thermal runaway.
Low leakage .300(7.6) .230(5.8) 1.0(25.4) MIN. DO-15 .034(.86) .028(.71) Unit: inch ( mm ).
Exceeds environmental standards of MIL-S-19500/228.
