PS2002B - Photo Coupler

Datasheet Summary

Description

The PS2002B is an optically coupled isolator containing a GaAsP light emitting diode and an NPN silicon Darlington-connected photo transistor.

Features

  • o High-voltage isolation: 2500VDC min o High transfer ratio: 100% min o Economical, compact, plastic dual in-line package.

📥 Download Datasheet

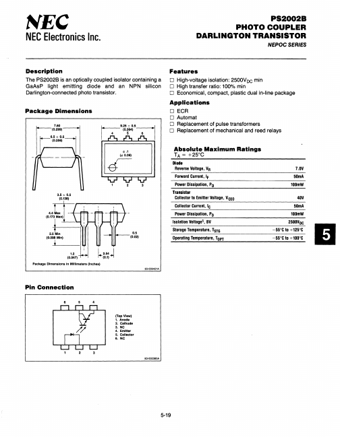

Datasheet preview – PS2002B

Datasheet Details

Part number PS2002B
Manufacturer NEC Electronics
File Size 153.10 KB
Description Photo Coupler
Datasheet download datasheet PS2002B Datasheet
Additional preview pages of the PS2002B datasheet.

📁 Similar Datasheet

  • PS200 - PLASTIC SILICON RECTIFIER (Pan Jit International)
  • PS2001 - photomultiplier power supply (Sens Tech)
  • PS2004B - PHOTO COUPLER (ETC)
  • PS2004B - PHOTO COUPLER (NEC)
  • PS2005B - PHOTO COUPLER (NEC)
  • PS2006 - (PS20xxx) NPN-OUTPUT DC-INPUT OPTOCOUPLER (NEC)
  • PS2006B - PHOTO COUPLER (NEC)
  • PS2007 - (PS20xxx) NPN-OUTPUT DC-INPUT OPTOCOUPLER (NEC)
  • PS2007B - HIGH SPEED PHOTO COUPLER (NEC)
  • PS200R - FAST SWITCHING PLASTIC RECTIFIER (Pan Jit International)
Other Datasheets by NEC Electronics

    Full PDF Text Transcription

    Click to expand full text
    fttfEC NEC Electronics Inc. PS2002B PHOTO COUPLER DARLINGTON TRANSISTOR NEPOC SERIES Description The PS2002B is an optically coupled isolator containing a GaAsP light emitting diode and an NPN silicon Darlington-connected photo transistor. Package Dimensions 1A9.(205.3~640 ) .5A1 4 "5 6 Features o High-voltage isolation: 2500VDC min o High transfer ratio: 100% min o Economical, compact, plastic dual in-line package Applications o ECR o Automat o Replacement of pulse transformers o Replacement of mechanical and reed relays r ~ .1 (~ 0.39) I I 2.54 1+ (0.1)-.j Package Dimensions in Millimeters (Inches) 0.5 (0.
