SA55 - PULSE WIDTH MODULATION AMPLIFIER

The SA55 is a 5A H-Bridge designed for motion control applications.

The device is built using a multi-technology process which combines bipolar and CMOS control circuitry with DMOS power devices on the same monolithic structure.

Ideal for driving DC and stepper motors; the SA55 accomodates peak outp

SA55 Features

* DELIVERS UP TO 5A CONTINUOUS OUTPUT OPERATES AT SUPPLY VOLTAGES TO 55V TTL AND CMOS COMPATIBLE INPUTS NO “SHOOT-THROUGH” CURRENT THERMAL WARNING FLAG OUTPUT AT 145° C THERMAL SHUTDOWN (OUTPUTS OFF) AT 160° C IN

SA55_ETC.pdf

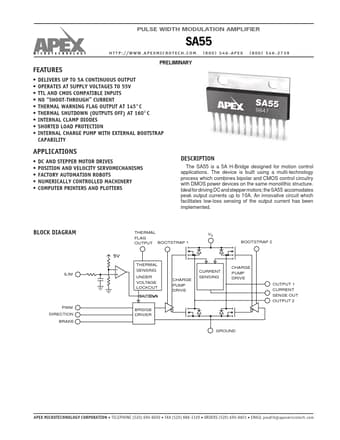

Preview of SA55 PDF
SA55 Datasheet Preview Page 2

Datasheet Details

Part number:

SA55

Manufacturer:

ETC

File Size:

40.15 KB

Description:

Pulse width modulation amplifier.
