SA5521D - LVDT signal conditioner

Name: SA5521D
SKU: SA5521D-484005

Philips

📥 Download Datasheet

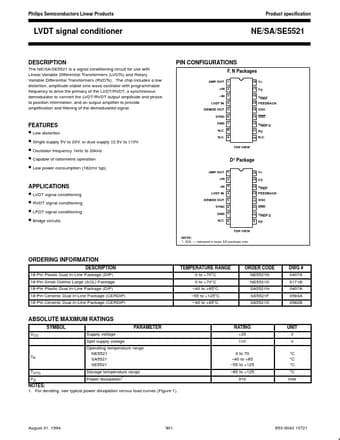

SA5521D Datasheet Preview — Preview of SA5521D PDF

Datasheet Details

Part number	SA5521D
Manufacturer	Philips
File Size	69.44 KB
Description	LVDT signal conditioner
Datasheet	SA5521D_PhilipsSemiconductors.pdf

SA5521D Product details

Description

The NE/SA/SE5521 is a signal conditioning circuit for use with Linear Variable Differential Transformers (LVDTs) and Rotary Variable Differential Transformers (RVDTs).

Features

GND 7 N. C. 8 N. C. 9.
Low distortion.
Single supply 5V to 20V, or dual supply ±2.5V to ±10V.
Oscillator frequency 1kHz to 20kHz.
Capable of ratiometric operation.
Low power consumption (182mV typ).
