SA5534N - Dual and single low noise op amp

SA5534N Description

Philips Semiconductors Linear Products Product specification Dual and single low noise op amp NE5533/5533A/ NE/SA/SE5534/5534A .
The 5533/5534 are dual and single high-performance low noise operational amplifiers.

SA5534N Features

* NON
* INV INPUT A 2 BALANCE A 3 V
* 4 BALANCE B 5 NON
* INV B 6 INV B 7
* Small-signal bandwidth: 10MHz
* Output drive capability: 600Ω, 10VRMS at VS=±18V
* Input noise voltage: 4nVń ǸHz
* DC voltage gain: 100000
* AC voltage gain: 6000 at

SA5534N Applications

* (unity gain amplifier, capacitive load, slew rate, low overshoot, etc. ) If very low noise is of prime importance, it is recommended that the 5533A/5534A version be used which has guaranteed noise specifications. PIN CONFIGURATIONS NE/SA/SE5534/5534A D, FE, N Packages BALANCE INVERTING INPUT NON-INV

📥 Download Datasheet

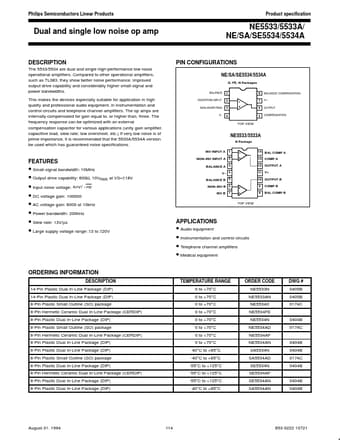

Preview of SA5534N PDF
