SA5534 - Low-Noise Operational Amplifiers

SA5534 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community NE5534, NE5534A, SA5534, SA5534A SLOS070D * JULY 197.
The NE5534, NE5534A, SA5534, and SA5534A devices are high-performance operational amplifiers combining excellent dc and ac characteristics.

SA5534 Features

* 1 Equivalent Input Noise Voltage 3.5 nV/√Hz Typ
* Unity-Gain Bandwidth 10 MHz Typ
* Common-Mode Rejection Ratio 100 dB Typ
* High DC Voltage Gain 100 V/mV Typ
* Peak-to-Peak Output Voltage Swing 32 V Typ With VCC± = ±18 V and RL = 600 Ω
* High Slew Ra

SA5534 Applications

* Audio Preamplifiers
* Servo Error Amplifiers
* Medical Equipment

📥 Download Datasheet

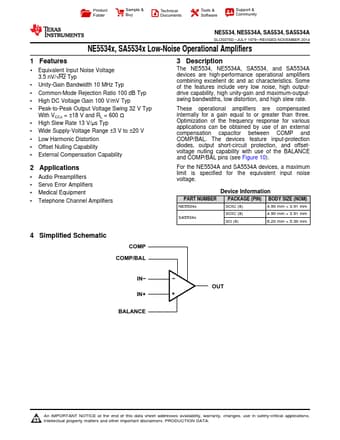

Preview of SA5534 PDF
