SA555P, SA555 Datasheet - Texas Instruments

SA555P, SA555, Precision Timers

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community NA555, NE555, SA555, SE555 SLFS022I * SEPTEMBER 1973.
These devices are precision timing circuits capable of producing accurate time delays or oscillation.

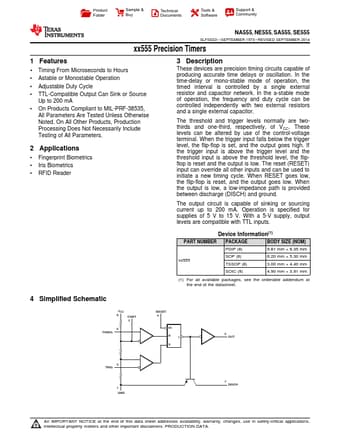

datasheet Preview Page 1 from Datasheet4u.com

SA555-etcTI.pdf

SA555P Datasheet Preview — This datasheet PDF includes multiple part numbers: SA555P, SA555. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SA555P, SA555

Manufacturer:

Texas Instruments ↗

File Size:

2.13 MB

Description:

Precision Timers

Note:

This datasheet PDF includes multiple part numbers: SA555P, SA555.
Please refer to the document for exact specifications by model.

Features

* 1 Timing From Microseconds to Hours
* Astable or Monostable Operation
* Adjustable Duty Cycle
* TTL-Compatible Output Can Sink or Source Up to 200 mA
* On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Prod

Applications

* Fingerprint Biometrics
* Iris Biometrics
