SA5521

LVDT signal conditioner

Philips

SA5521 Features

* GND 7 N.C. 8 N.C. 9

* Low distortion

* Single supply 5V to 20V, or dual supply ±2.5V to ±10V

* Oscillator frequency 1kHz to 20kHz

* Capable of ratiometric operation

* Low power consumption (182mV typ) APPLICATIONS D1 Package AMP OUT 1 +IN 2

* IN 3 LV

SA5521 General Description

The NE/SA/SE5521 is a signal conditioning circuit for use with Linear Variable Differential Transformers (LVDTs) and Rotary Variable Differential Transformers (RVDTs). The chip includes a low distortion, amplitude-stable sine wave oscillator with programmable frequency to drive the primary of the LV.

SA5521 Datasheet (69.44 KB)

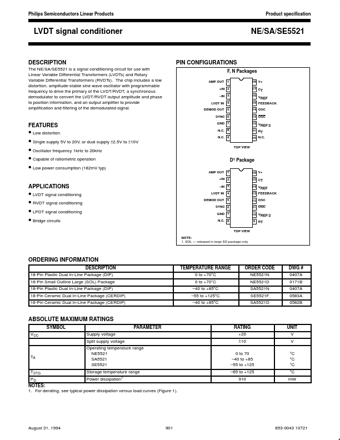

SA5521 Datasheet Preview — Preview of SA5521 PDF

Datasheet Details

Part number:

SA5521

Manufacturer:

Philips

File Size:

69.44 KB

Description:

Lvdt signal conditioner.
