SA5532 Datasheet - Philips

SA5532 Internally-compensated dual low noise operational amplifier

The 5532 is a dual high-performance low noise operational amplifier. Compared to most of the standard operational amplifiers, such as the 1458, it shows better noise performance, improved output drive capability and considerably higher small-signal and power bandwidths. This makes the device especia.

SA5532 Features

* Small-signal bandwidth: 10MHz

* Output drive capability: 600Ω, 10VRMS

* Input noise voltage: 5nVń ǸHz (typical)

* DC voltage gain: 50000

* AC voltage gain: 2200 at 10kHz

* Power bandwidth: 140kHz

* Slew rate: 9V/µs

* Large supply vol

SA5532 Datasheet (125.94 KB)

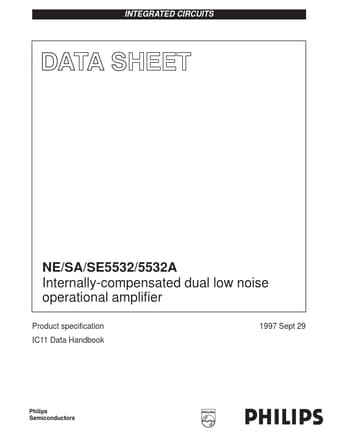

Preview of SA5532 PDF
SA5532 Datasheet Preview Page 2 SA5532 Datasheet Preview Page 3

Datasheet Details

Part number:

SA5532

Manufacturer:

Philips

File Size:

125.94 KB

Description:

Internally-compensated dual low noise operational amplifier.
