SG6105 - Power Supply Supervisor + Regulator + PWM

SG6105 Description

Product Specification Power Supply Supervisor + Regulator + PWM SG6105 .
SG6105 controller is designed for switching mode power supply for desktop PCs.

SG6105 Features

* against over-voltage and over-power are implemented. It directly senses all the output rails for OVP without the need of external dividers. An innovated AC-signal sampling circuitry provides a sufficient power-down warning signal for PG. A built-in timer generates accuracy timing for control circuit

SG6105 Applications

* Switching mode power supply for Computers, such as: ATX NLX SFX (micro-ATX) MARKING DIAGRAMS 20 PIN CONFIGURATION PSON 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 VCC RI SS IN COMP GND FB1 VREF1 VREF2 FB2 SG6105T XXXXXXXYYWWV V33 V5 OPP 1 UVAC NVP V12 T: D = DIP XXXXXXX: Wafer L

📥 Download Datasheet

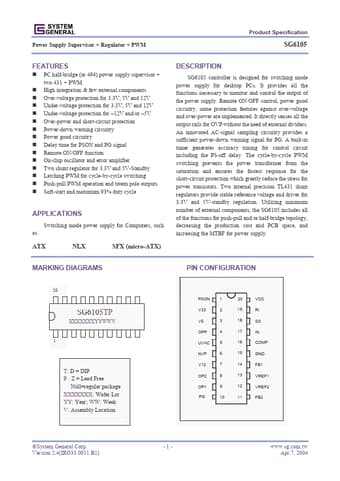

Preview of SG6105 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SG6105
Manufacturer
ETC
File Size
559.80 KB
Datasheet
SG6105_ETC.pdf
Description
Power Supply Supervisor + Regulator + PWM
