Part number: SG6105D
Manufacturer: ETC
File Size: 519.82KB
Download: 📄 Datasheet
Description: Power Supply Supervisor + Regulator + PWM
against over-voltage and over-power are implemented. It directly senses all the output rails for OVP without the need of external dividers. An innovated AC-signal samplin.
Switching mode power supply for Computers, such as:
ATX
NLX
SFX (micro-ATX)
MARKING DIAGRAMS
20
PIN CONFIGURATION
.

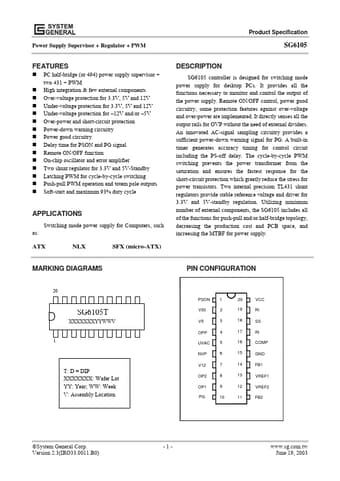

SG6105 controller is designed for switching mode power supply for desktop PCs. It provides all the functions necessary to monitor and control the output of the power supply. Remote ON/OFF control, power good circuitry, some protection features agains.
