SG6100

DIODE ARRAY CIRCUITS

LINFINITY

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	Stock	Quantity	Price	Buy Now
	3M	SG6100	MSG6100F-2-5	RF EMI ABSORB/SHLD SHEET 5MX2"	DigiKey	1	1 units	$248.64	🛒 Buy Now

📥 Download PDF (465.90 KB)

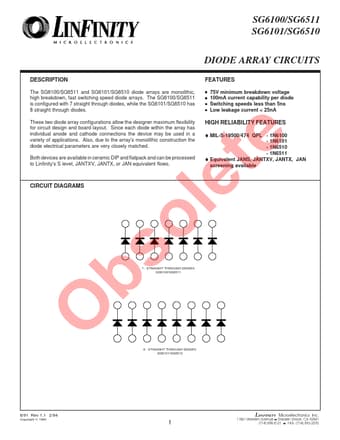

SG6100 Datasheet Preview Page 1 — Preview of SG6100 Datasheet

Datasheet Details

Part number:

SG6100

Manufacturer:

LINFINITY

File Size:

465.90 KB

Download:

📄 Download SG6100 Datasheet PDF

Description:

Diode array circuits.
SG6100/SG6511 SG6101/SG6510 DIODE ARRAY CIRCUITS DESCRIPTION The SG6100/SG6511 and SG6101/SG6510 d.
The SG6100/SG6511 and SG6101/SG6510 diode arrays are monolithic, high breakdown, fast switching spee.

✔ SG6100 Features

75V minimum breakdown voltage
100mA current capability per diode
Switching speeds less than 5ns
Low leakage current < 25nA HIGH RELIABILITY FEATURES
MIL-S-19500

✔ SG6100 Application

Also, due to the array's monolithic construction the diode electrical parameters are very closely matched.
