SG6101

DIODE ARRAY CIRCUITS

LINFINITY

SG6101 Features

* 75V minimum breakdown voltage

* 100mA current capability per diode

* Switching speeds less than 5ns

* Low leakage current < 25nA HIGH RELIABILITY FEATURES

* MIL-S-19500/474 QPL - 1N6100 -

SG6101 General Description

The SG6100/SG6511 and SG6101/SG6510 diode arrays are monolithic, high breakdown, fast switching speed diode arrays. The SG6100/SG6511 is configured with 7 straight through diodes, while the SG6101/SG6510 has 8 straight through diodes. These two diode array configurations allow the designer maximum f.

SG6101 Datasheet (465.90 KB)

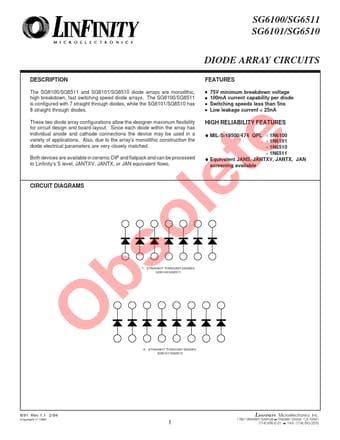

SG6101 Datasheet Preview — Preview of SG6101 PDF

Datasheet Details

Part number:

SG6101

Manufacturer:

LINFINITY

File Size:

465.90 KB

Description:

Diode array circuits.
