STK20C04 - CMOS nvSRAM High Performance 512 x 8 Nonvolatile Static RAM

Datasheet Summary

Description

The Simtek STK20C04 is a fast static RAM (30, 35, 45ns), with a nonvolatile electrically-erasable PROM (EEPROM) element incorporated in each static memory cell.

The SRAM can be read and written an unlimited number of times, while independent nonvolatile data resides in EEPROM.

Features

  • 30, 35 and 45ns Access Times 15, 20 and 25ns Output Enable Access Unlimited Read and Write to SRAM Hardware STORE Initiation Automatic STORE Timing 105 STORE cycles to EEPROM 10 year data retention in EEPROM Automatic RECALL on Power Up Hardware RECALL Initiation Unlimited RECALL cycles from EEPROM Single 5V±10% Operation Commercial and Industrial Temperatures Availab.

📥 Download Datasheet

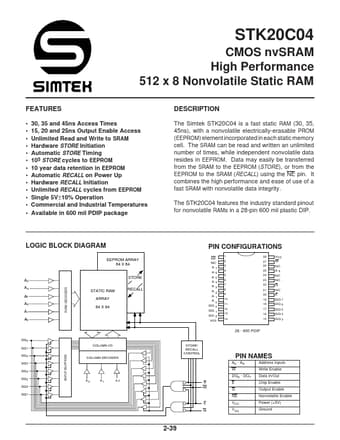

Datasheet preview – STK20C04

Datasheet Details

Part number STK20C04
Manufacturer ETC
File Size 79.26 KB
Description CMOS nvSRAM High Performance 512 x 8 Nonvolatile Static RAM
Datasheet download datasheet STK20C04 Datasheet
Additional preview pages of the STK20C04 datasheet.

📁 Similar Datasheet

  • STK200 - Flash MCU Starter Kit User Guide Manual (Atmel)
  • STK20N3LLH5 - N-channel Power MOSFET (STMicroelectronics)
  • STK2236-X - Ambient Light Sensor (Sensortek)
  • STK224N4F7AG - Automotive-grade N-channel Power MOSFET (STMicroelectronics)
  • STK22C48 - 2Kx8 AutoStore nvSRAM (Simtek)
  • STK22N05 - N-Channel Transistor (ST Microelectronics)
  • STK22N06 - N-Channel Transistor (ST Microelectronics)
  • STK22N6F3 - N-Channel Power MOSFET (STMicroelectronics)
  • STK24N4LLF5 - Power MOSFET (STMicroelectronics)
  • STK24N4LLH5 - N-channel Power MOSFET (STMicroelectronics)
Other Datasheets by ETC

Full PDF Text Transcription

Click to expand full text
STK20C04 STK20C04 CMOS nvSRAM High Performance 512 x 8 Nonvolatile Static RAM FEATURES • • • • • • • • • • • • • 30, 35 and 45ns Access Times 15, 20 and 25ns Output Enable Access Unlimited Read and Write to SRAM Hardware STORE Initiation Automatic STORE Timing 105 STORE cycles to EEPROM 10 year data retention in EEPROM Automatic RECALL on Power Up Hardware RECALL Initiation Unlimited RECALL cycles from EEPROM Single 5V±10% Operation Commercial and Industrial Temperatures Available in 600 mil PDIP package DESCRIPTION The Simtek STK20C04 is a fast static RAM (30, 35, 45ns), with a nonvolatile electrically-erasable PROM (EEPROM) element incorporated in each static memory cell.
