STK20N3LLH5

N-channel Power MOSFET

STMicroelectronics

STK20N3LLH5 Features

* Type STK20N3LLH5

* VDSS 30 V RDS(on) max < 0.007 Ω RDS(on)

* Qg 68 nC

* mΩ Ultra low top and bottom junction to case thermal resistance RDS(on)

* Qg industry benchmark Extremely low on-resistance RDS(on) Very low switching gate charge Fully e

STK20N3LLH5 General Description

This product utilizes the 5th generation of design rules of ST’s proprietary STripFET™ technology. The lowest available RDS(on)
*Qg, in this chip scale package, makes this device suitable for the most demanding DC-DC converter applications, where high power density is to be achieved. Table 1. Dev.

STK20N3LLH5 Datasheet (362.26 KB)

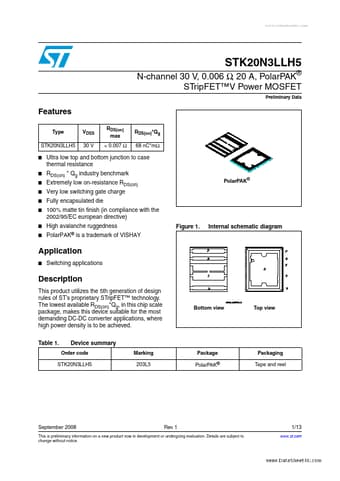

STK20N3LLH5 Datasheet Preview — Preview of STK20N3LLH5 PDF

Datasheet Details

Part number:

STK20N3LLH5

Manufacturer:

STMicroelectronics ↗

File Size:

362.26 KB

Description:

N-channel power mosfet.
