STK24N4LLH5 N-channel Power MOSFET

STK24N4LLH5 Description

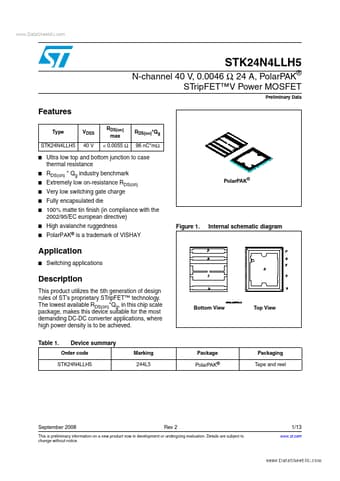

www.DataSheet4U.com STK24N4LLH5 N-channel 40 V, 0.0046 Ω , 24 A, PolarPAK® STripFET™V Power MOSFET Preliminary Data .
This product utilizes the 5th generation of design rules of ST’s proprietary STripFET™ technology. Qg, in this chip s.

STK24N4LLH5 Features

* Type STK24N4LLH5
* VDSS 40 V RDS(on) max < 0.0055 Ω RDS(on)
* Qg 96 nC
* mΩ Ultra low top and bottom junction to case thermal resistance RDS(on)
* Qg industry benchmark Extremely low on-resistance RDS(on) Very low switching gate charge Fully
