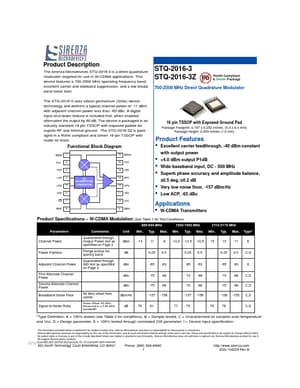

datasheet Preview Page 1 from Datasheet4u.com

STQ2016-3Z, STQ-2016-3 700-2500 MHz Direct Quadrature Modulator

www.DataSheet4U.com Product .
The Sirenza Microdevices STQ-2016-3 is a direct quadrature modulator targeted for use in W-CDMA applications.

STQ-2016-3_ETC.pdf

STQ2016-3Z Datasheet Preview — This datasheet PDF includes multiple part numbers: STQ2016-3Z, STQ-2016-3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STQ2016-3Z, STQ-2016-3

Manufacturer:

ETC

File Size:

580.94 KB

Description:

700-2500 MHz Direct Quadrature Modulator

Note:

This datasheet PDF includes multiple part numbers: STQ2016-3Z, STQ-2016-3.
Please refer to the document for exact specifications by model.

Features

* a 700-2500 MHz operating frequency band, excellent carrier and sideband suppression, and a low broadband noise floor. The STQ-2016-3 uses silicon germanium (SiGe) device technology and delivers a typical channel power of -11 dBm with adjacent channel power less than -65 dBc. A digital input shut-dow
