STQ2NK60ZR-AP Datasheet, Mosfet, ST Microelectronics

STQ2NK60ZR-AP Features

  • Mosfet TYPE STQ2NK60ZR-AP STP2NK60Z STD2NK60Z-1 s s s s s s Figure 1: Package ID 0.4 A 1.4 A 1.4 A Pw 3W 45 W 45 W <8Ω <8Ω <8Ω VDSS 600 V 600 V 600 V RDS(on) TYPICAL RDS(on) = 7.2 Ω EXTREM

PDF File Details

Part number:

STQ2NK60ZR-AP

Manufacturer:

STMicroelectronics ↗

File Size:

430.50kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition

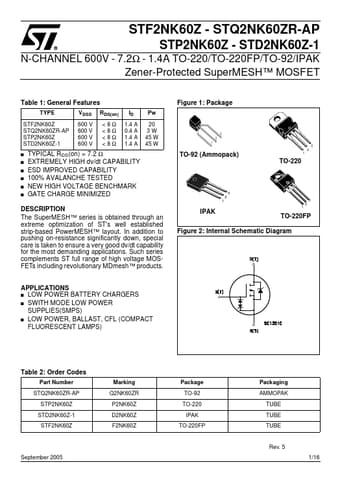

Datasheet Preview: STQ2NK60ZR-AP 📥 Download PDF (430.50kb)
Page 2 of STQ2NK60ZR-AP Page 3 of STQ2NK60ZR-AP

STQ2NK60ZR-AP Application

  • Applications Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. 2 1 IPAK Figure 2: Internal
