TPD2125 Datasheet - ETC

DUAL COMPLEMENTARY MOSFET DRIVER

TPD2125 Features

* Programmable Break-Before-Make Low Power Consumption Output over-current protection Over-temperature protection 24-Pin TSSOP-EP Package Benefits Reduced system cost with smaller/less expensive power supply and heat sink Signal fidelity equal to high quality Class-AB amplifiers THD+N versus POWER 1

TPD2125 General Description

The TPD2125 is a high-speed dual complimentary MOSFET driver. The TPD2125 converts CMOS or TTL inputs to gate signals suitable for driving a complimentary pair of MOSFETs in a dual half-bridge or single full-bridge configuration. When three TPD2125’s are mated with a TCD6000, the chipset is a six-c.

TPD2125 Datasheet (71.25 KB)

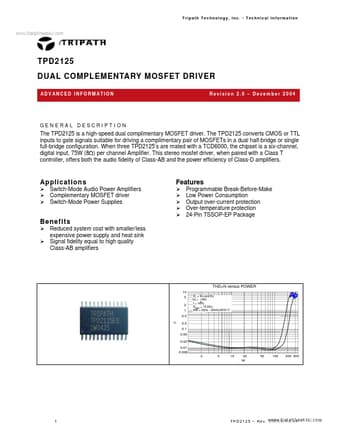

Preview of TPD2125 PDF

Datasheet Details

Part number:

TPD2125

Manufacturer:

ETC

File Size:

71.25 KB

Description:

Dual complementary mosfet driver.
Tr i path Technol ogy, I nc. - Techni cal I nfor m ati on www.DataSheet4U.com TPD2125 DUAL COMPLEMENTARY MOSFET DRIVER ADVANCED INFORMATION Revision.
