TPD2005F - High-Side Power Switch Array

Toshiba Semiconductor

📥 Download Datasheet

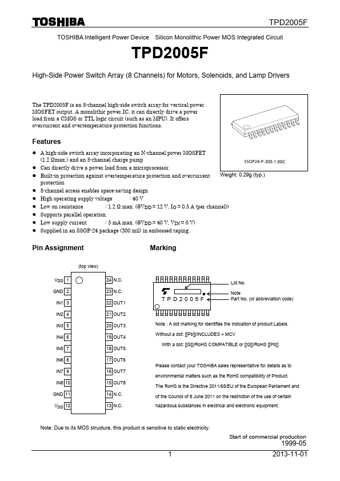

TPD2005F Datasheet Preview — Preview of TPD2005F PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TPD2005F
Manufacturer: Toshiba ↗ Semiconductor
File Size: 437.05 KB
Datasheet: TPD2005F_ToshibaSemiconductor.pdf
Description: High-Side Power Switch Array

TPD2005F Product details

Features

z A high-side switch array incorporating an N-channel power MOSFET (1.2 Ωmax. ) and an 8-channel charge pump z Can directly drive a power load from a microprocessor. z Built-in protection against overtemperature protection and overcurrent protection Weight: 0.29g (typ. ) z 8-channel access enables space-saving design z High operating supply voltage : 40 V z Low on resistance : 1.2 Ω max. (@VDD = 12 V, IO = 0.5 A (per channel)) z Supports parallel operation. z Low supply current : 5 mA m.
