TPD1024S

Silicon Monolithic Power MOS

TPD1024S Features

* l A monolithic power IC with a new structure combining a control block and a vertical power MOS FET (π-MOS) on a single chip. l Can directly drive a power load from a CMOS logic. l Built-in protection against overvoltage, load short circuiting, and thermal shutdown. l Low on resistance : RDS (ON) =

TPD1024S General Description

Pin No. 1 Symbol IN Function Input pin. Input is CMOS-compatible, with pull-down resistor connected. Even if the input is open, output will not accidentally turn on. Output pin. When current in excess of the typical current (3.5 A (typ.)) flows to the output pin, the current limiter operates to prot.

TPD1024S Datasheet (193.50 KB)

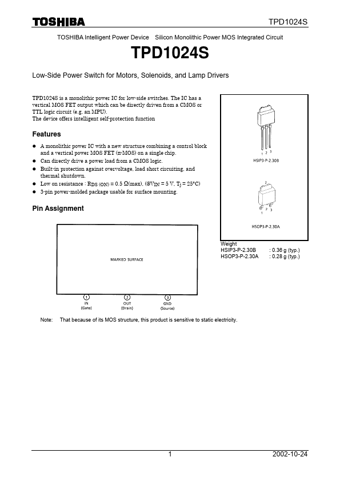

Preview of TPD1024S PDF

Datasheet Details

Part number:

TPD1024S

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

193.50 KB

Description:

Silicon monolithic power mos.
TPD1024S TOSHIBA Intelligent Power Device Silicon Monolithic Power MOS Integrated Circuit TPD1024S Low-Side Power Switch for Motors, Solenoids, and L.
