TPD1028BS

Silicon Monolithic Power MOS

TPD1028BS Features

* l A monolithic power IC with a new structure combining a control block and a vertical power MOSFET (π-MOS) on a single chip. Built-in Protection circuits against overvoltage, load short circuiting, and thermal shutdown. l Can directly drive a power load from a CMOS or TTL logic. l Weight: 0.36 g (t

TPD1028BS General Description

Pin No. 1 Symbol IN Pin Description Input pin. This pin is connected to a pull-down resistor internally, so that even when input wiring is open-circuited, outputcan never be turned on inadvertently. Output pin. If an inrush current flows (e.g., from a lamp), the current is clamped at 10 A (typ.) by .

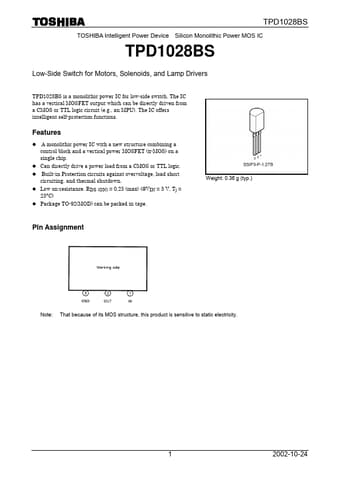

TPD1028BS Datasheet (191.99 KB)

Preview of TPD1028BS PDF

Datasheet Details

Part number:

TPD1028BS

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

191.99 KB

Description:

Silicon monolithic power mos.
TPD1028BS TOSHIBA Intelligent Power Device Silicon Monolithic Power MOS IC TPD1028BS Low-Side Switch for Motors, Solenoids, and Lamp Drivers TPD1028B.
