TPD2007F - Low-Side Power Switch Array

Toshiba Semiconductor

📥 Download Datasheet

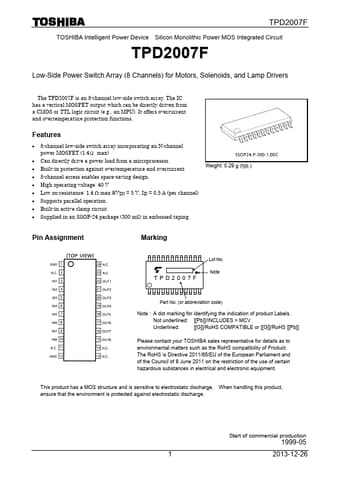

TPD2007F Datasheet Preview — Preview of TPD2007F PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TPD2007F
Manufacturer: Toshiba ↗ Semiconductor
File Size: 456.99 KB
Datasheet: TPD2007F_ToshibaSemiconductor.pdf
Description: Low-Side Power Switch Array

TPD2007F Product details

Description

Pin No.

Features

8-channel low-side switch array incorporating an N-channel power MOSFET (1.4Ω max).
Can directly drive a power load from a microprocessor.
Built-in protection against overtemperature and overcurrent.
8-channel access enables space-saving design.
High operating voltage: 40 V.
Low on-resistance: 1.4 Ω max @VIN = 5 V, ID = 0.5 A (per channel).
Supports parallel operation.
Built-in active clamp circuit.
Supplied in.
