TST50WV05AR - TFT LCD

TST50WV05AR Datasheet Preview — Preview of TST50WV05AR PDF

Datasheet Details

Part number	TST50WV05AR
Manufacturer	ETC
File Size	1.28 MB
Description	TFT LCD
Datasheet	TST50WV05AR-ETC.pdf

TST50WV05AR Product details

Description

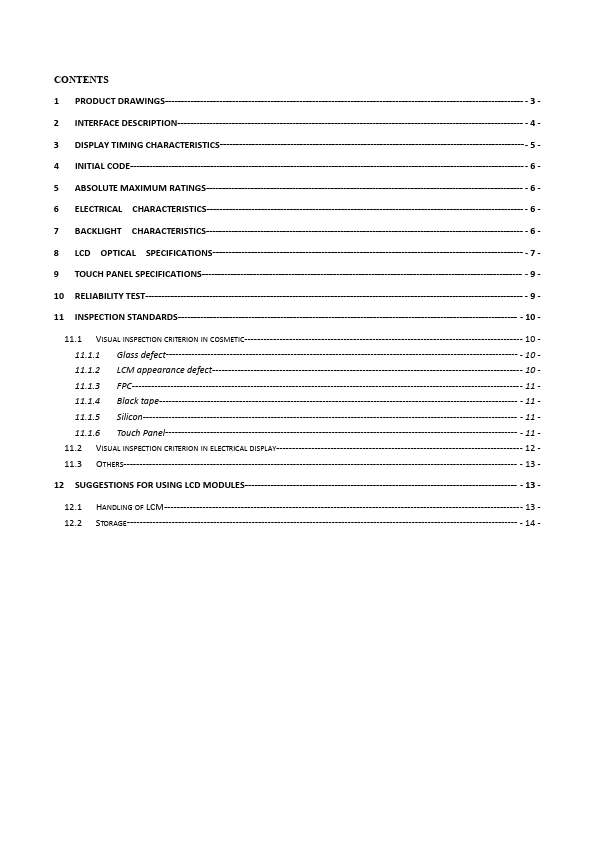

----------------------------------------------------------------------------------------------------------- - 4 3 DISPLAY TIMING CHARACTERISTICS----------------------------------------------------------------------------------------------- - 5 4 INITIAL CODE--------------------------------------------------------------------------------------------------------------------------- - 6 5 ABSOLUTE MAXIMUM RATINGS----------------------------------------------------------------------------------------

Features

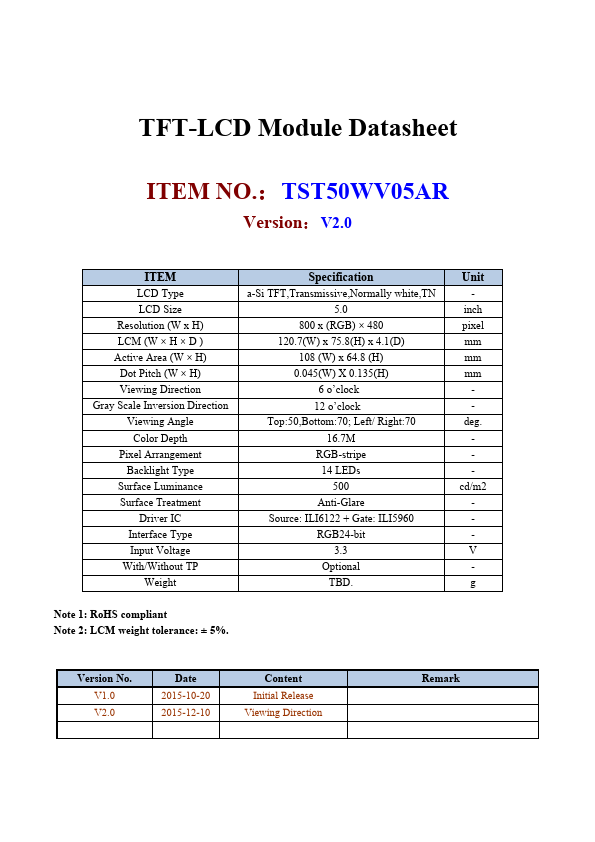

1.LCD:5.0" TFT. 2.Resolution： 800.
480 LED-A 3.Display Color：262K 4.Driver IC: Source: ILI6122 + Gate: ILI5960 5.Viewing Angle: 12 O'CLOCK. 6.Interface Types:RGB24-bit . 7.Backlight Types：2.
7=14LED,21.7V,40mA. 8.Operating temperature： -20 C°~70 C°. 9.Storage Temperature: -30 C°~80 C°. 10.Storage Humidity:10RH ~ 40RH . 11.All materials comply with ROHS standard. LED-K TEAM SOURCE.
